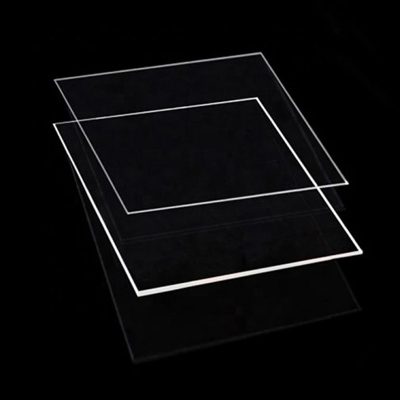

JGS1 Window

1、JGS1 Characteristic

   Made of synthetic quartz sand, uv light transmission and uniformity, little microbubbles, high purity


2、JGS1 Use

   Quartz materials and accessories for optical, optical, semiconductor industries

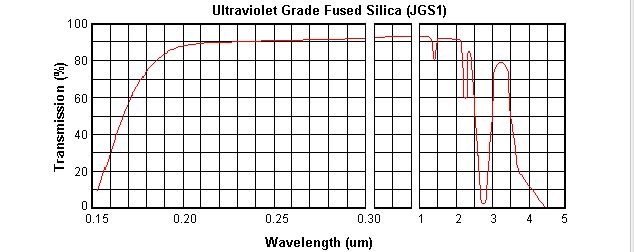

3、JGS1 Applied spectral band

   Far ultraviolet 185-2500nm


4、Typical contents of impurities(unit:ppm)

Na

K

Mg

Li

Ca

Fe

Al

Cu

0.1

0.01

0.01

0.01

0.03

0.02

0.05

0.01


5、Physical properties

Density

(20℃kg/m3

Softening point

(℃)

Annealing point

(℃)

Deformation points(℃)

  1. 2.2*103

1670

1210

1110

20191119150091549154

Size:


Thickness: 0.14-50mm (Max)


Length and width:2- 1200(Max) * 2-1200mm (Max )


Diameter: 5-1000mm(Max)


Sample terms:


1. Sample can be prepared within 2-5 days.


2. after-sales service : It is assured that we can change or refund the products if there is any quality    problem.
